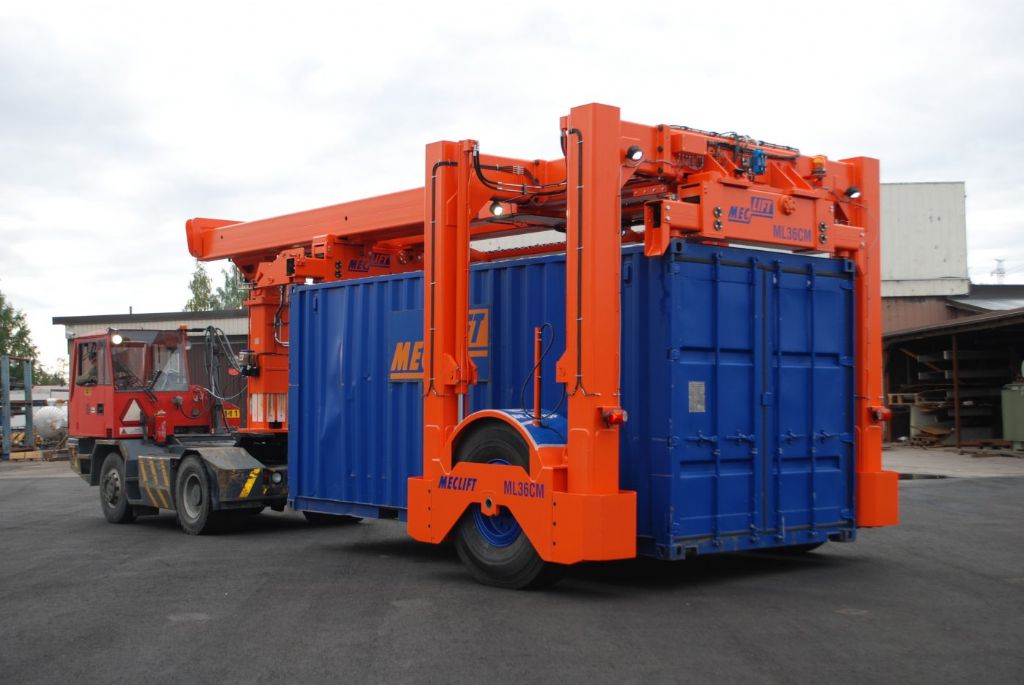

Meclift ML36CM
The Container Mover ML36CM is cost-efficient solution for terminal areas and locations, where there is need to move containers from place A to place B. This equipment handles all container sizes ranging from 20 to 45 feet, including High Cube containers, and lifts them on and off normal highway chassis.
It can also be customized to handle one particular container size.

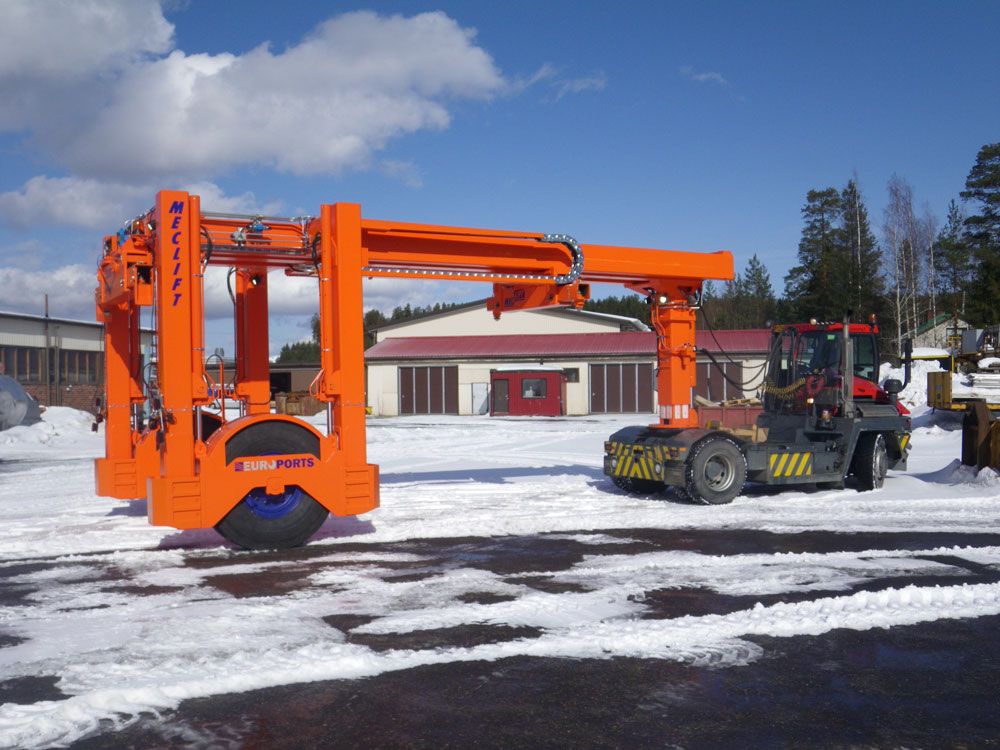

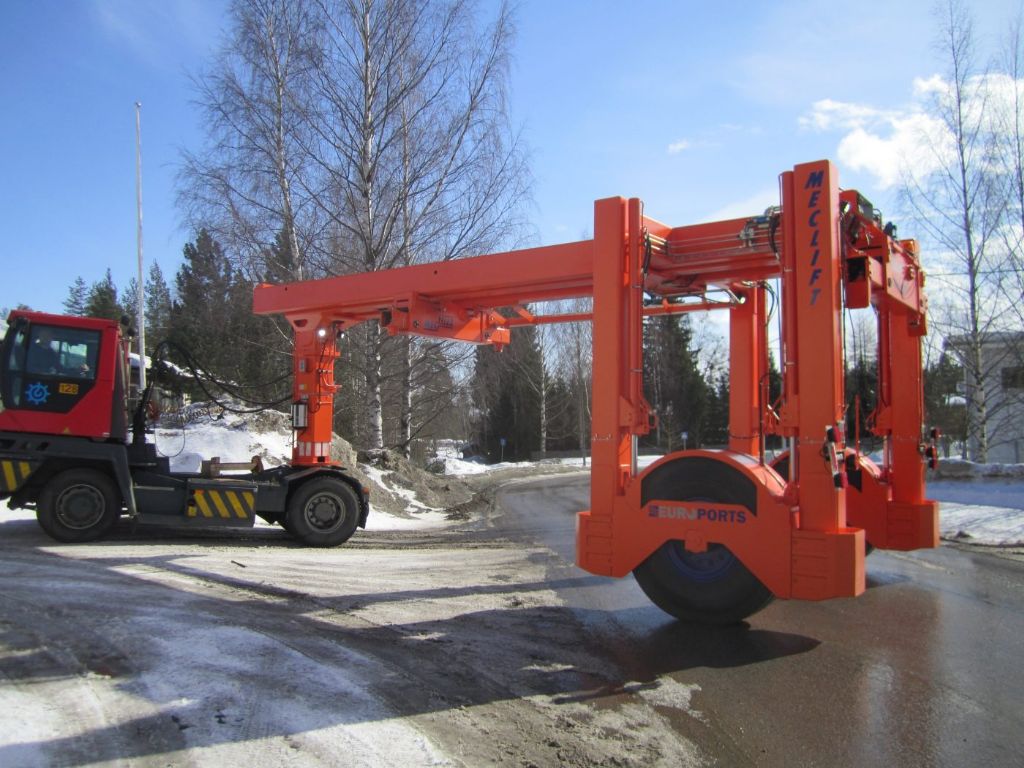

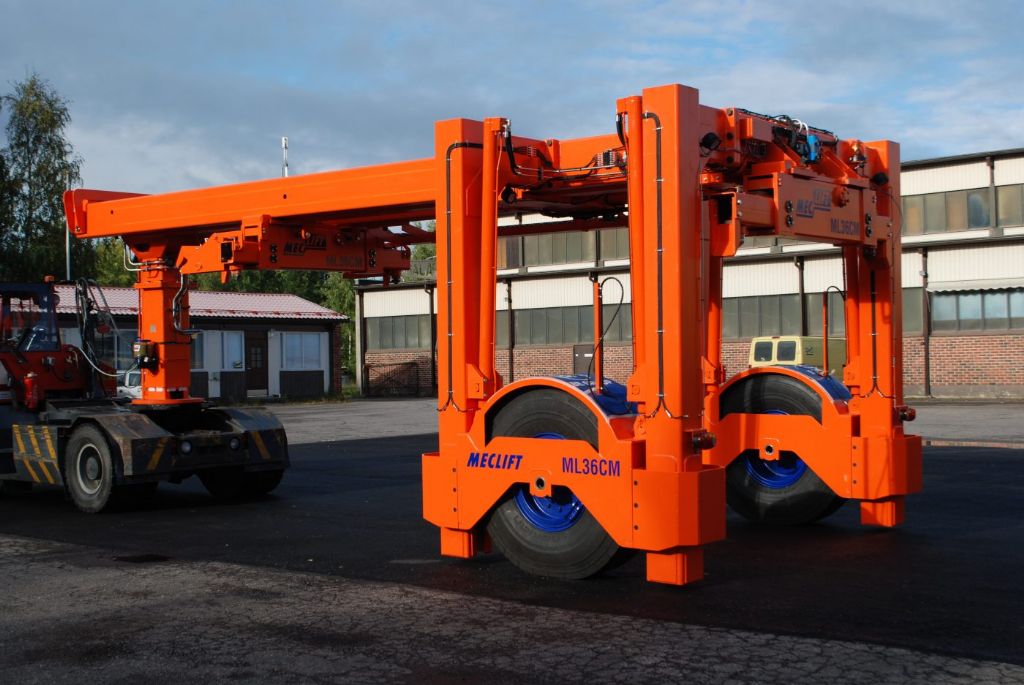

ML36CM fits through narrow terminal doors, and under bridges in road traffic. Certain requirements taken into consideration, it can be attached practically with any terminal tractor brand. Work safety is improved by open forward-visibility from the terminal tractor´s cabin and smooth operation. There are no sharp impacts on the reaching device, which provides better work ergonomics. Due to compact and clear design, usability of the machine is very good, and need for maintenance is low.

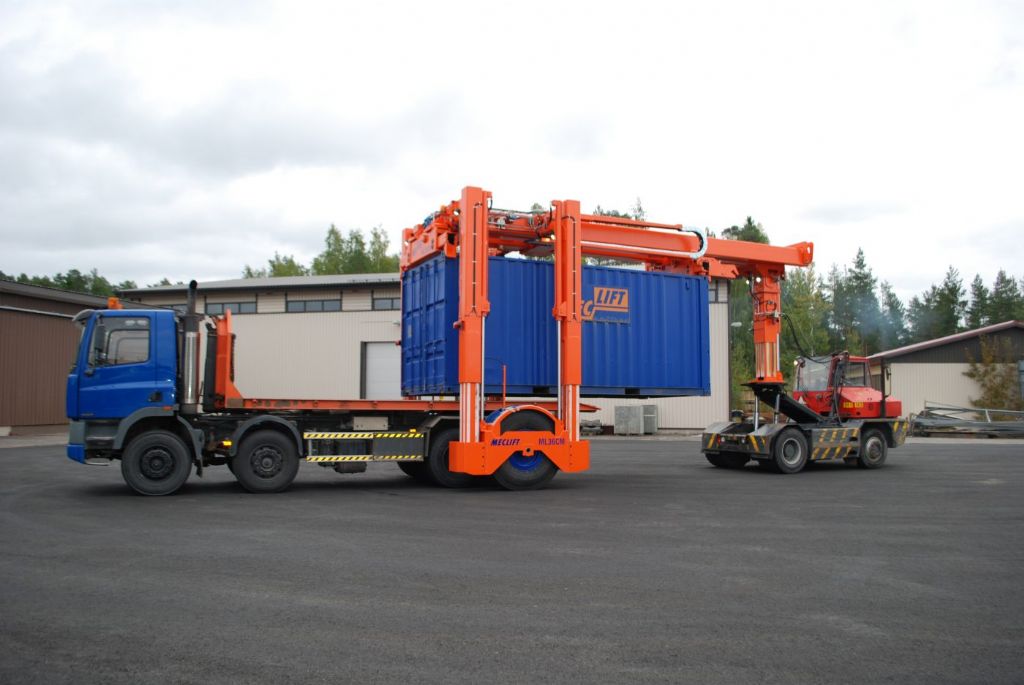

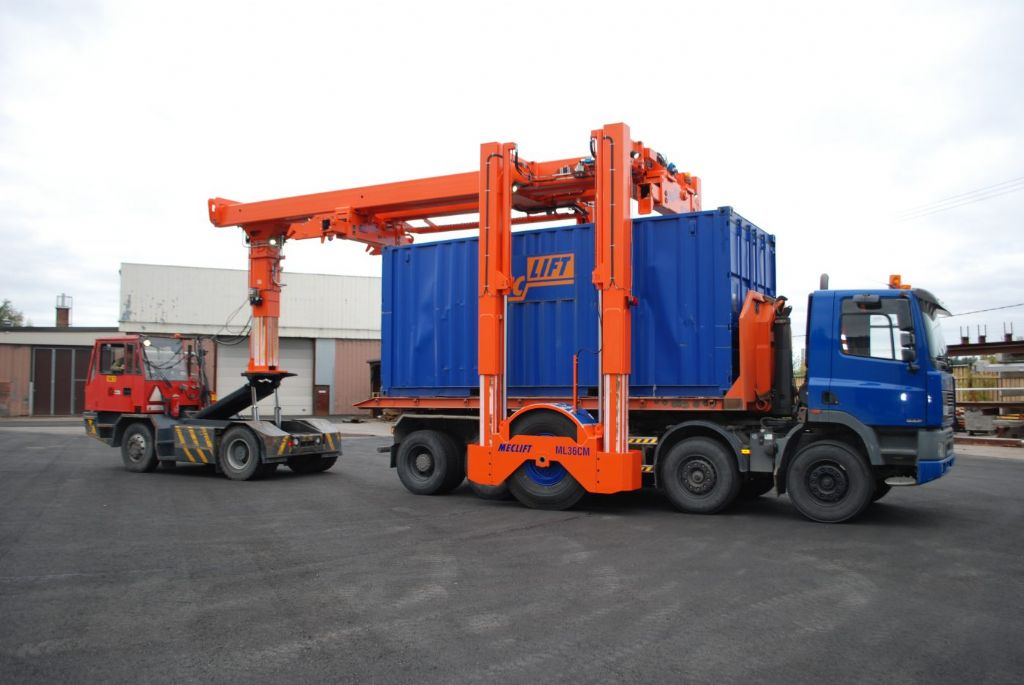

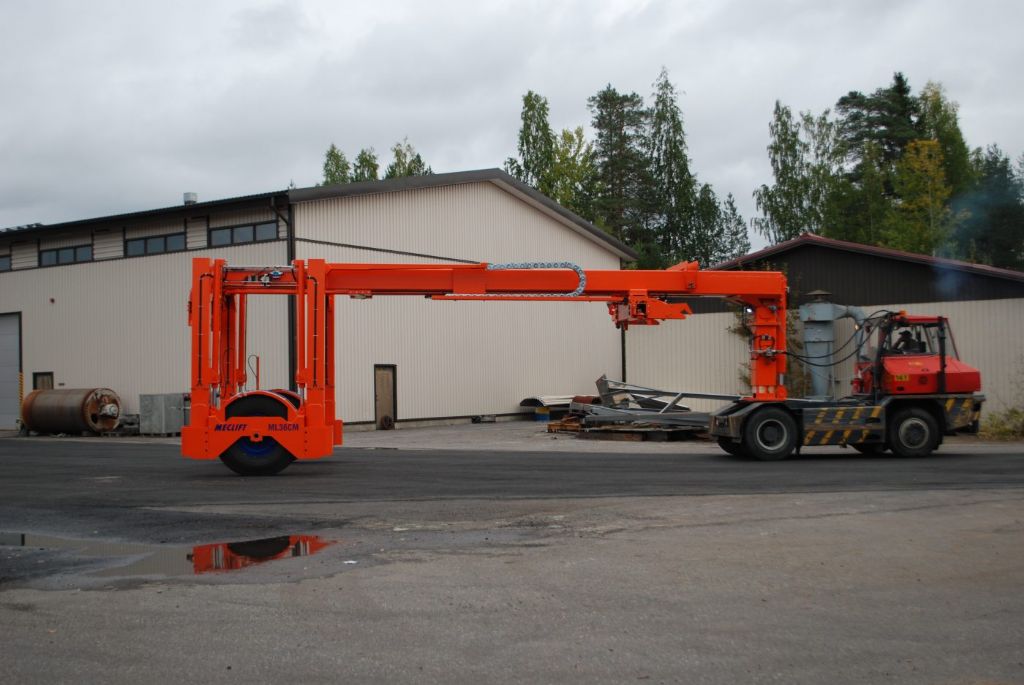

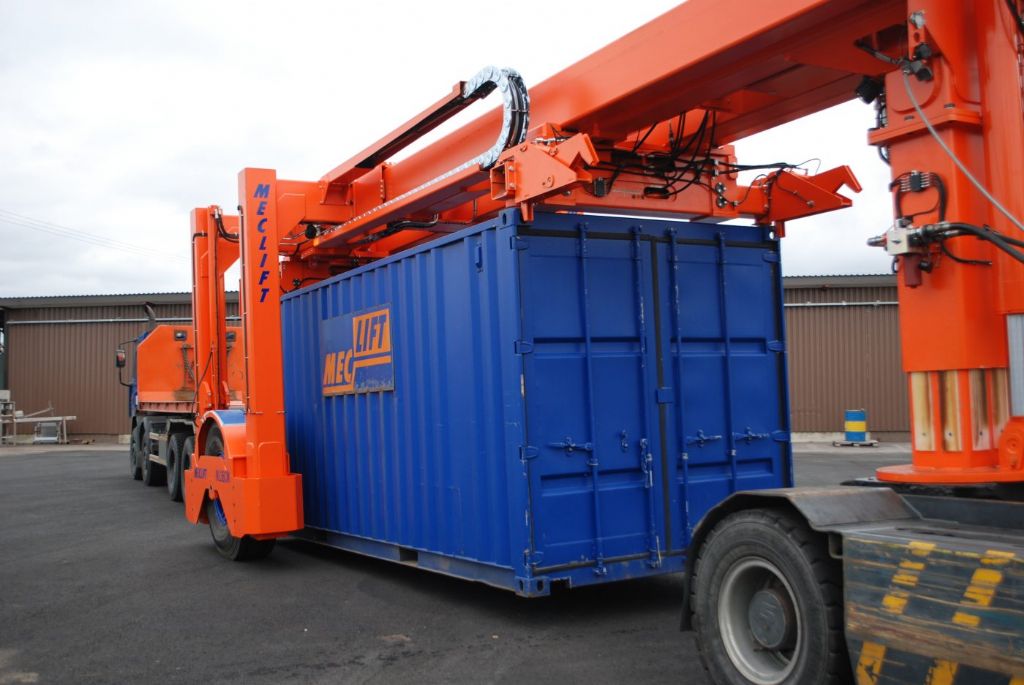

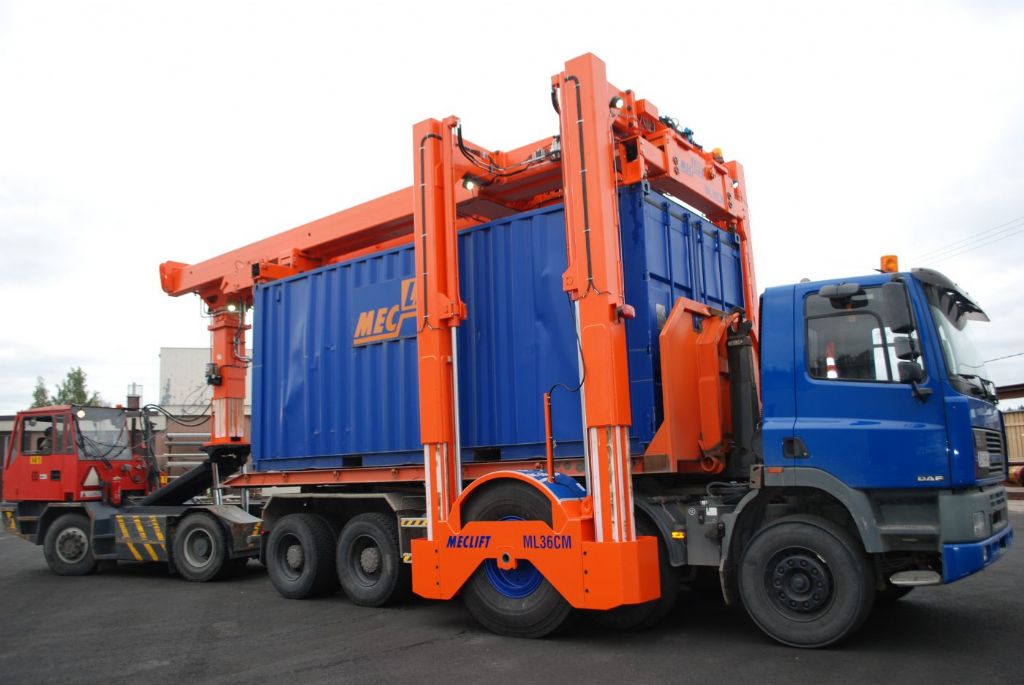

Attached to a terminal tractor, ML36CM is powered by the terminal tractor´s hydraulics. The length of the main beam is automatically adjustable for different container sizes, and the height of the machine can be raised and lowered for loading and unloading containers on trailers or on ground. Front and rear twist-locks can be separately adjusted sideways to grip the container.
Details:
| Standard colors | Orange (RAL2004) and Blue (RAL5002) |
| Lifting properties | |
| Lifting capacity | 36,000 kg |
| Lifting height | 2,020 mm |
| Lifting speed | ~0.1 (depending on terminal tractor) |
| Side movement of toplift units | plus/minus 150 |
| Dimensions | |
| Length, min | 9,500 mm |
| Length, max | 15,800 mm |
| Width | 4,020 mm |
| Height (min) | 3,700 mm |
| Height (max) | 5,800 mm |
| Height with the container | container height + 1,000 mm |
| Weight (without attachments) | 16,000 kg |
| Technical specifications | |
| Tyres | |
| Specialities | |
| Adjustable for 20´, 30´, 40´ and 45´ ISO freight containers | |
Meclift ML36CMfx20
High usability in 20 feet container moving

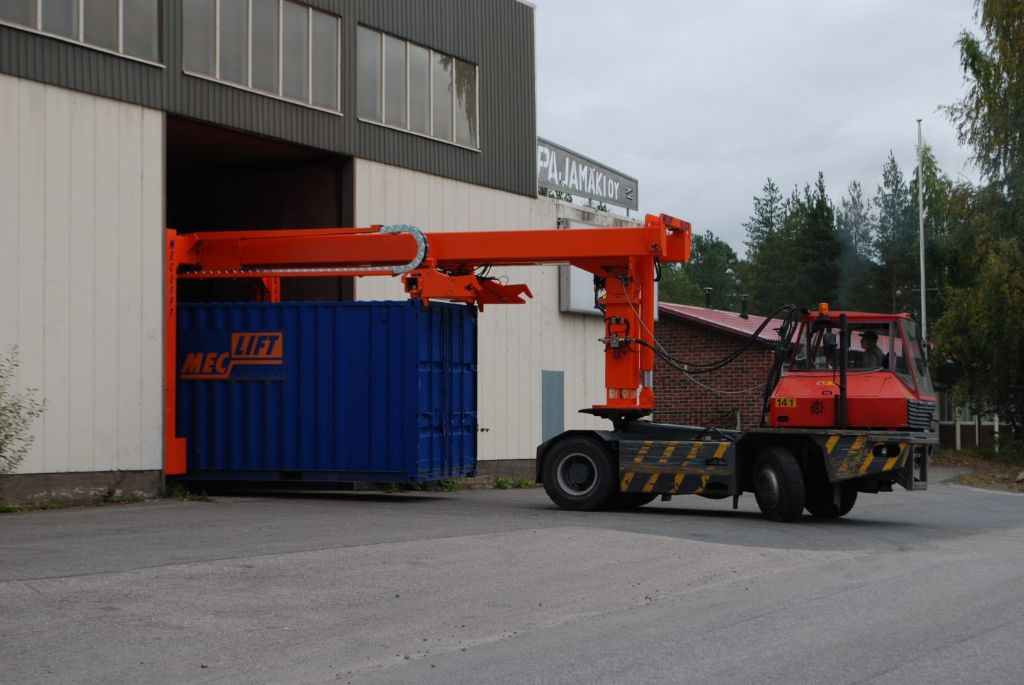

Meclift™ Container Mover ML36CMfx20 is especially designed for handling 20 feet containers. It efficiently moves containers between locations and lifts them on and off normal highway chassis. It fits trough narrow terminal doors, and under bridges in road traffic.
Meclift™ ML36CMfx20 can be attached to most terminal tractor brands. In addition to high usability and efficiency, it provides good work safety in demanding conditions. The low structure of the machine enables open forward-visibility from the terminal tractor’s cabin. There are no sharp impacts on the reaching device, which improves work ergonomics.
Meclift™ ML36CMfx20 is powered by the terminal tractor’s hydraulics. Height can be raised and lowered for loading and unloading containers on trailers or on the ground. The front and rear twist-locks can be separately adjusted sideways to grip the container.
“Enormous savings in money and timewise.”
Meclift ML36CMt
Cost efficient and fastest solution for moving and unloading 20’ bulk material containers
Meclift™ Container Mover ML36CMt is designed for handling 20 feet bulk material containers. It efficiently moves containers from place A to place B and lifts them on and off normal highway chassis. ML36CMt unloads 20’ bulk material containers without any additional equipment. Tilting angle is 42°. It fits through narrow terminal doors, and under bridges in road traffic.
Meclift™ ML36CMt can be attached to most terminal tractor brands. In addition to high usability and efficiency, it enhances work safety in demanding conditions. The low structure of the machine enables open forward-visibility from the terminal tractor’s cabin. There are no sharp impacts on the reaching device, which improves work ergonomics.
Meclift™ ML36CMt is powered by the terminal tractor’s hydraulics. Height can be raised and lowered for loading and unloading containers on trailers or on the ground. The front and rear twist-locks can be separately adjusted sideways to grip the container. Meclift™ ML36CMt is the best solution when you need to move and unload bulk material containers.
“Enormous savings in money and timewise.”
Details:
| Type | ML36CMt |
| Standardfarben | Orange (RAL2004) und Blau (RAL5002) und Schwarz |
| Hubeigenschaften: | |
| Tragfähigkeit | 36.000 kg |
| Hubhöhe | 1.900 mm |
| Hubgeschwindigkeit | ~ 0,1 (abhängig vom Terminal-Traktor) |
| Maße | |
| Länge, min | 10.000 mm |
| Breite | 4.123 mm |
| Höhe (min) | 4.000 mm |
| Höhe (max) | 5.900 mm |
| Bodenfreiheit | 350 mm |
| Gewicht ohne Zubehör | 21.500 kg |
| Technische Spezifikationen | |
| Reifen | 2 x 16.00-25 |
| Optionen: | |
Meclift ML5016SR
Efficient logistics between railroads and highways
Meclift™ ML5016SR is an ideal solution when containers are handled in confined places. With a lifting capacity of 42.5 tons under the top lift spreader at a load center of 1.6 meters, it stacks containers up to three high with duplex booms and even four high with triplex booms. The lifting height is customizable according to the customers’ needs.
When it comes to agility, functionality, efficiency and safety, this side reach stacker is an ideal solution. With a container lifted to the top of its frame, it handles cargo in very tight places and moves at speeds up to 30 km/h.
Meclift™ ML5016SR can be driven through a standard 6 by 5-meter terminal door opening.
Meclift™ ML5016SR enhances logistics between railroads and highways even in areas without advanced infra-structure. All that is needed is a solid ground, on which to lay a foundation for a cargo handling station. This side reach stacker is manufactured by special order only.
“Meclift Side Reach Stacker is a shortcut between railroads and highways.”
Details
| Manufacturer Oy Meclift Ltd, Finland | |
| Type | ML5016SR |
| Standard colors | Orange (RAL2004) and Blue (RAL5002) |
| Lifting properties | |
| Lifting capacity | 42,500 kg |
| Load center | 1,600 mm |
| Lifting height | 7,690 mm |
| Reach | Depending on boom structure |
| Dimensions | |
| Length | 11,700 mm |
| Width | 4,000 mm |
| Height (min) | 4,500 mm |
| Ground clearance | 220 mm |
| Weight | 64,000 kg |
| Turning radius | 7,550 mm |
| Technical specifications | |
| Power source | Diesel engine |
| Manufacturer | Volvo |
| Model | TWD 1230 VE |
| Power rating ISO 2534 | 310@2100 kW@rpm |
| Peak torgue | 1860@1300 Nm@rpm |
| Transmission | Hydrostatic 4 wheel drive |
| Driving speed | 30 km/h |
| Service brake | Hydraulic motors and disc brake |
| Parking brake | Disc brake |
| Tyres | 6x18.00-25 |
| Specialities | |
| - Horizontally and vertically movable cabin | |
| - Air conditioning and heating | |
| - Different boom constructions and lifting attachments available | |
| - Lifting height can be customized according to customer needs | |
